We have been deeply involved in the industry for more than ten years, and have served more than 10W+ customers. WiFi modules, Bluetooth modules, power modules and other products are in more than 80 countries and regions, providing customers with professional and reliable IoT module products.

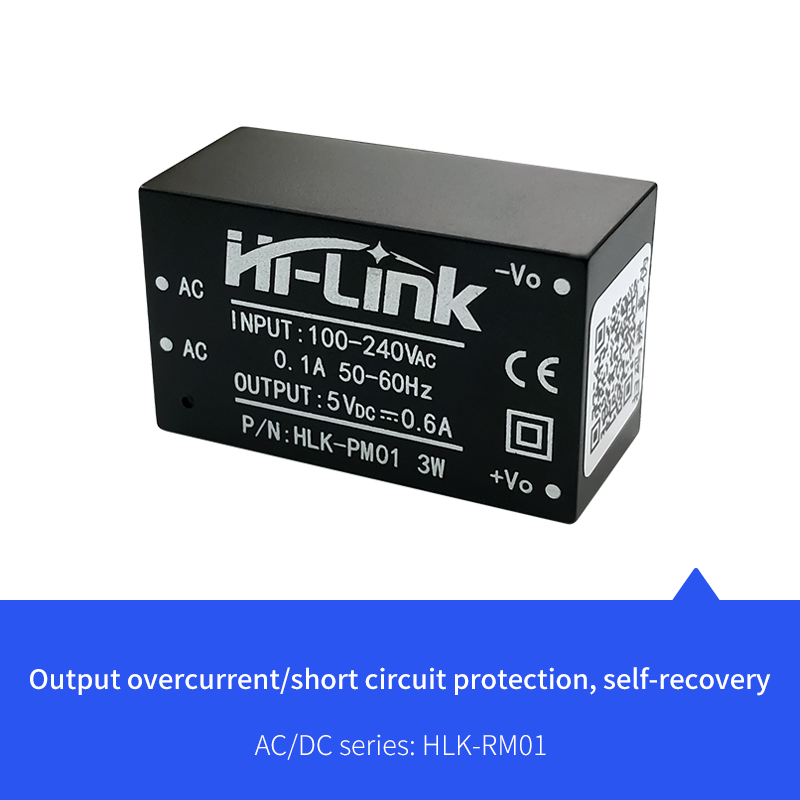

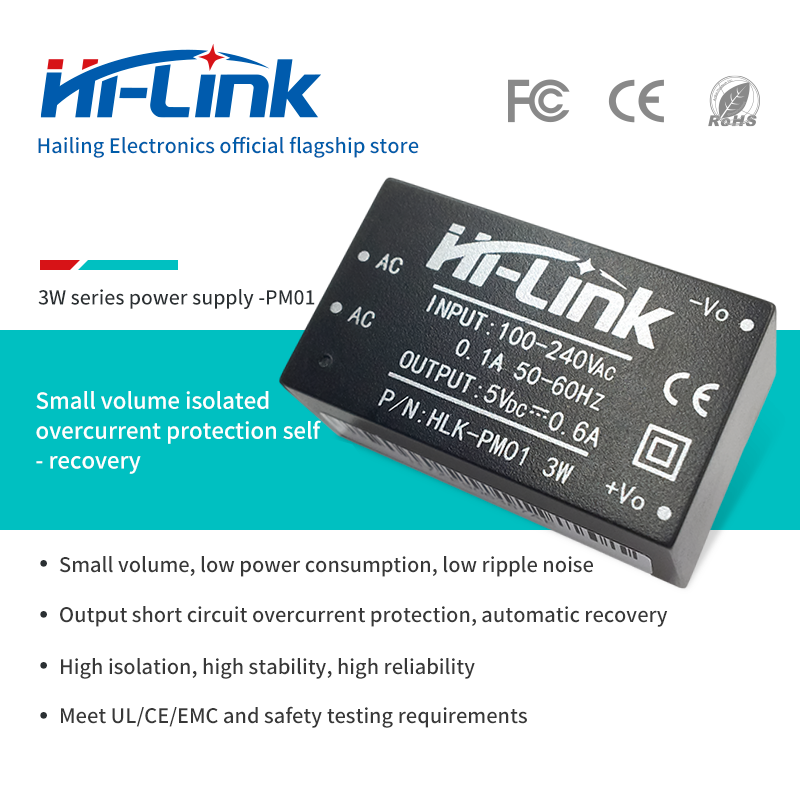

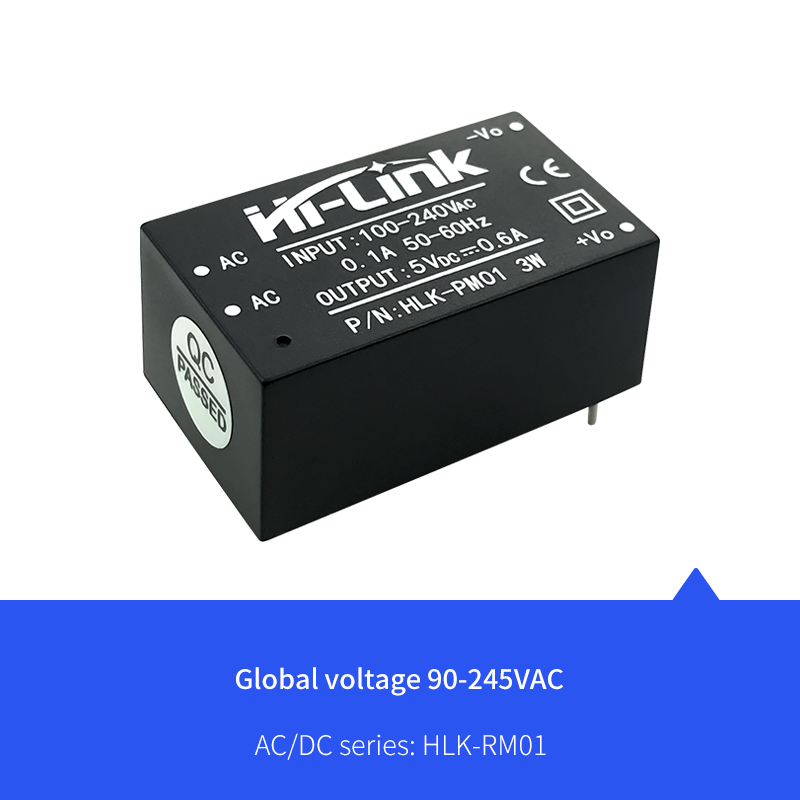

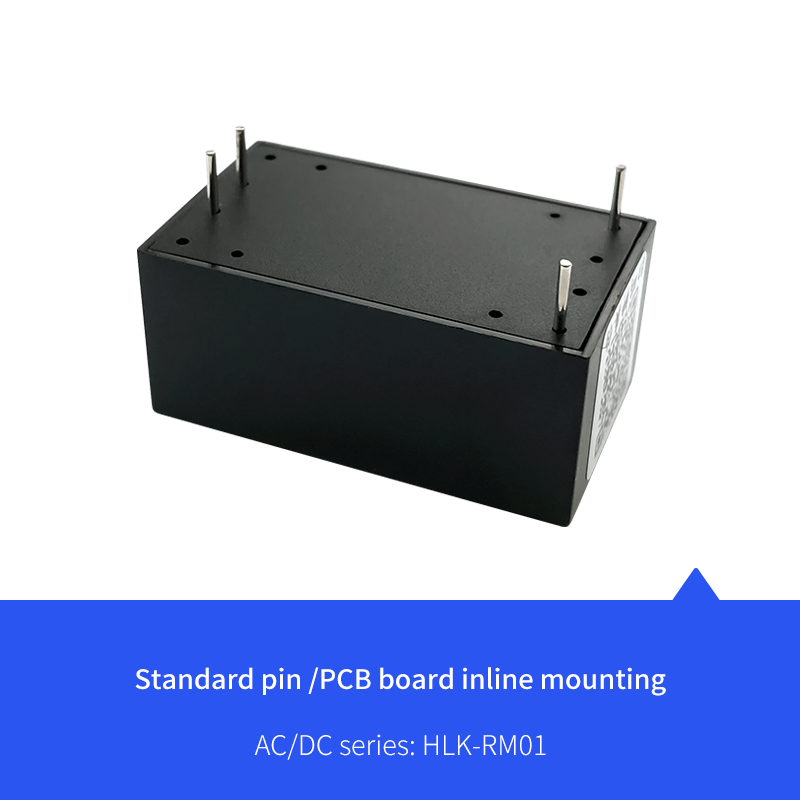

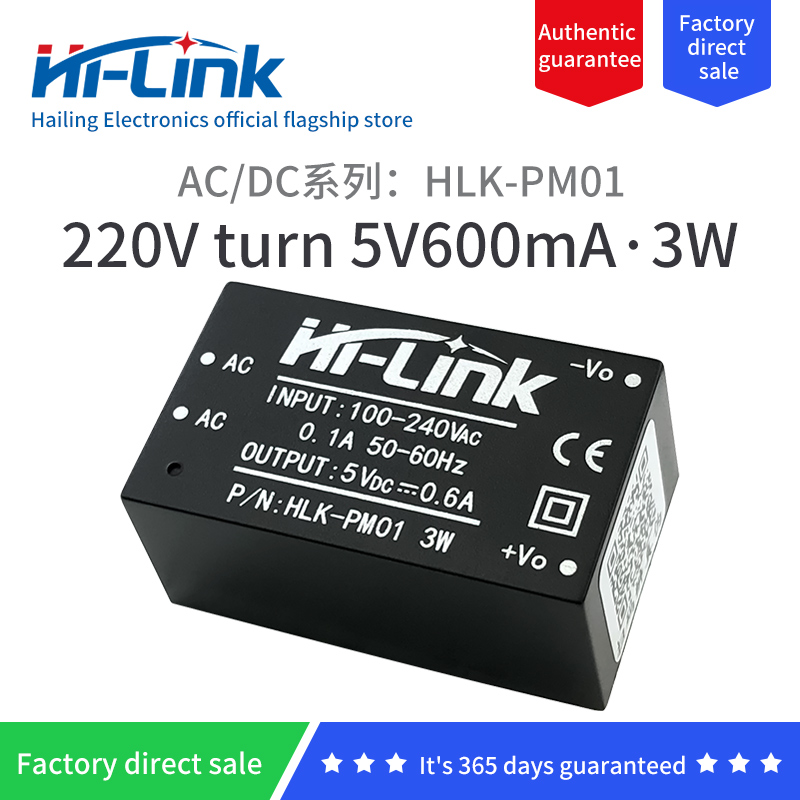

PM01
  • PM01

AC-DC电源模块|3W系列

PageView : 33253

Apply Download Technical Support Purchase

产品介绍:AC/DC电源模组PMxx系列产品输出功率为3W,全球通用的输入电压范围85~265Vac,3000Vac常规隔离电压,允许工作温度-25℃~+60℃,具备良好的输出短路和过流保护并可自恢复,满足UL、CE、RoHS认证要求,广泛应用于智能家居、自动化控制、通讯设备、 仪器仪表等行业中。


产品特点:

-超薄型、超小型、业内最小体积

-全球通用输入电压(85~265Vac)

-低功耗、绿色环保 、空载损耗<0.1W

-低纹波、低噪声

-良好的输出短路和过流保护并可自恢复

-高效率、功率密度大

-输入输出隔离耐压3000Vac

-100% 满载老化和测试

-高可靠性、长寿命设计,连续工作时间大于 100000小时

-满足 UL、CE 要求

-产品设计满足 EMC及安规测试要求

-采用高品质环保防水导热胶灌封,防潮、防振,满足防水防尘 IP65 标准

-经济的解决方案、性价比高

-无需外接电路即可工作

-1年质量保质期


规格参数:

-功率:3W

-输入电压:85~265Vac/120-350Vdc

-输出电压:3.3V/5V/9V/12V/15V/24V

-隔离电压:3000Vac

-输出方式:单路/稳压输出

-外观尺寸:34.8×20.5×15mm
